DEOXO & ADSORPTION DRYERS
MODULAR SYSTEM
AQUAGAS offers advanced adsorption dryers, deoxidizers, and filters for the purification of gases such as hydrogen, oxygen, helium, air, and more.
Traditional gas purification technologies that rely on adsorption typically result in a gas loss of 5-20%. AQUAGAS has developed a durable, proven, and cost-effective solution (model DR) that purifies gas without any gas loss—and without the need for any moving parts or bearings.

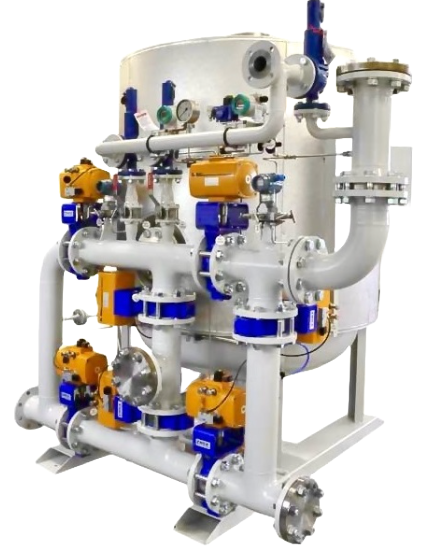

Our modular system includes pressure vessels, condensation units, piping, heaters, coolers, and more, allowing for a flexible and efficient design of purification systems tailored to meet each customer’s specific requirements.
Hydrogen Deoxo & Dryers
| TYPE DEDR / DHDR | SPECIFICATION |
| Flowrate | 5 – 20.000 Nm3/h |
| Design pressure | 5 – 400 bar |
| O2 inlet composition | ~1% |
| H2O inlet composition | Saturated |
| Inlet temperature | 5 – 100°C |
| Pressure drop | <0.3 bar |
| Operation | Continuously |
| Regeneration gas losses | 0% (closed loop) |
| Outlet temperature | 30°C |
| Outlet purification level | Grade 5.0 (99.999% H2) |
Features
- Flow/pressure acc. to customer needs
- Zero purge (no gas losses)
- Purification grade up to 6.0 (99,9999% H2)
- Optional PLC control
- Can be designed for H2/H2O removal in O2 (DHDR)
Applications
- Power-to-gas
- Hydrogen storage
- Hydrogen refinery
- Hydrogen for industrial/process use
Helium Dryers
| TYPE DEDR / DHDR | SPECIFICATION |
| Flowrate | 5 – 40.000 Nm3/h |
| Design pressure | 5 – 25 bar |
| Leak rate | <1 x 10-4 mbar l/s |
| H2O inlet composition | ~10 PPM |
| Inlet temperature | 5 – 30°C |
| Pressure drop | <0.1 bar |
| Operation | Continuously (twin tower) |
| Regeneration gas | Dry air |
| Outlet temperature | 30°C |
| Outlet purification level |
<0.1 ppm H2O |
FEATURES
- Flow/pressure acc. to customer needs
- Single or Twin tower
- Optional PLC control
- Optional purification sensing
APPLICATIONS
- Helium liquefiers
- Helium refrigeration plants
- Helium recovery systems
